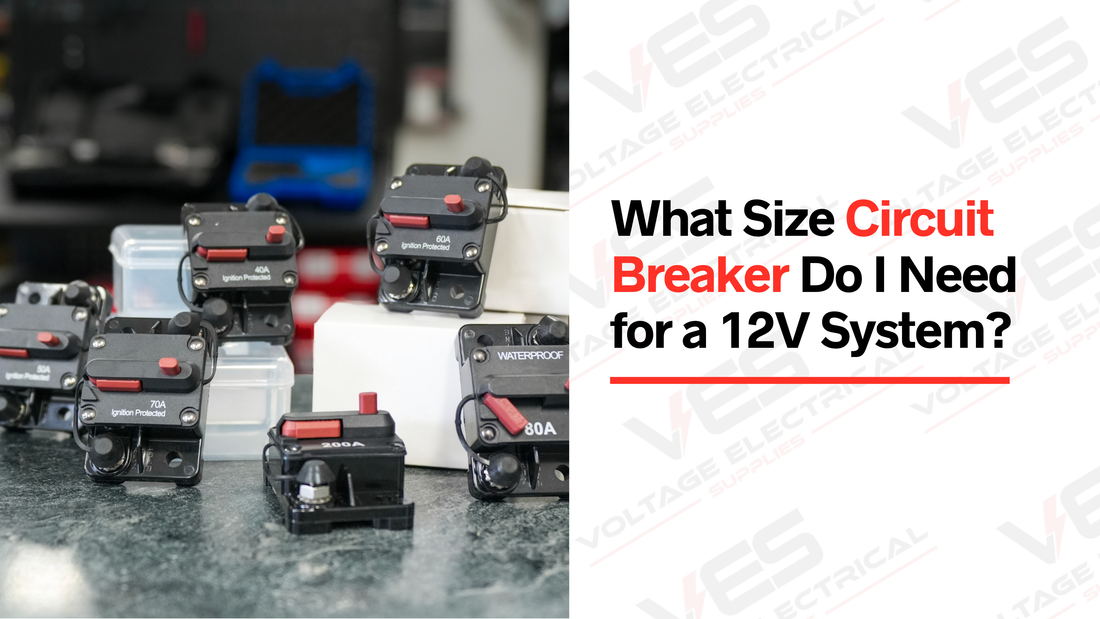

What Size Circuit Breaker Do I Need for a 12V System?
Share
Learn how to calculate current draw, check cable capacity and choose the right breaker for your 4WD, caravan, boat, trailer or off-grid 12V setup.
Choosing the correct circuit breaker for a 12V system is essential for protecting your wiring from excessive current, short circuits and potential heat damage. But with breaker ratings ranging from 30A to 300A, how do you know which size is right?
The short answer is that your circuit breaker must be large enough to carry the normal operating current of the connected equipment — but never larger than the safe current capacity of the cable it is protecting.
This guide explains how to calculate your current draw, account for cable capacity and choose the right 12V circuit breaker size for your 4WD, caravan, boat, trailer or off-grid electrical system.
This guide provides general information only. Always follow the equipment manufacturer's specified cable and circuit-protection requirements. If you are uncertain, consult a qualified auto electrician or marine electrician.
The Short Answer
To choose the correct circuit breaker for a 12V system:
The circuit breaker is primarily there to protect the cable — not simply the appliance connected to it.
A breaker that is too small may trip during normal use. A breaker that is too large may not disconnect the circuit before an overloaded cable becomes dangerously hot.
How Does a 12V Circuit Breaker Work?
A 12V circuit breaker monitors the current flowing through a circuit. If the current exceeds the breaker's rated capacity for long enough, the breaker trips and interrupts the electrical supply.
This helps protect the cable when a fault causes excessive current, such as:
- A short circuit
- Damaged cable insulation
- Incorrect wiring
- An overloaded circuit
- Faulty electrical equipment
Unlike a traditional fuse, a manual reset circuit breaker does not normally need to be replaced after it trips. Once the fault has been identified and repaired, the breaker can be manually reset.
A breaker should never be repeatedly reset without finding the reason it tripped.
How to Calculate the Current in a 12V System
If you know the wattage of an appliance but not its current draw, you can estimate the amperage using this formula:
For example, a 240W load operating at 12V would have a theoretical current draw of:
This is only a starting point. Real-world current can be affected by efficiency losses, changing battery voltage, startup current and operating conditions.
Whenever possible, use the current rating and circuit-protection recommendation provided by the equipment manufacturer instead of relying only on a calculation.
Example Calculations
| Equipment Power | Calculation at 12V | Theoretical Current |
|---|---|---|
| 120W | 120 ÷ 12 | 10A |
| 240W | 240 ÷ 12 | 20A |
| 600W | 600 ÷ 12 | 50A |
| 1,200W | 1,200 ÷ 12 | 100A |
| 2,400W | 2,400 ÷ 12 | 200A |
These figures are theoretical and should not be treated as final breaker recommendations. Inverters, motors, compressors and other high-draw equipment may require considerably more current during startup or under peak load.
The Breaker Must Protect the Cable
One of the most important rules when learning how to size a circuit breaker is that the breaker rating must not exceed the safe current capacity of the connected cable.
For example, installing a 100A circuit breaker on cable that can safely carry only 60A could allow the cable to overheat before the breaker trips.
The exact cable capacity depends on more than its advertised size. It can also be affected by:
- The copper conductor's actual cross-sectional area
- Cable length
- Insulation temperature rating
- Ambient temperature
- Whether the cable runs through an engine bay
- Whether multiple cables are bundled together
- Installation method
- Terminal and connector ratings
Always refer to a reliable cable ampacity chart and the product manufacturer's installation instructions.
Don't Forget Voltage Drop
A cable can be technically capable of carrying the current but still be too small for a long 12V cable run.
Because 12V systems operate at a relatively low voltage, even a small voltage loss can affect the performance of fridges, lights, chargers, pumps and other accessories.
Longer cable runs and higher currents generally require thicker cable to control voltage drop.
When calculating cable length, include the complete electrical path to the appliance and back — not only the distance between the battery and the appliance.
The cable must safely carry the required current.
The cable must limit voltage drop to an acceptable level.
If voltage-drop calculations require a larger cable, your circuit protection must still be selected according to the cable capacity, load requirements and manufacturer's instructions.
A Practical Circuit Breaker Sizing Example
Imagine you are installing an accessory with a maximum operating current of 45A.
A 60A breaker may be appropriate if the manufacturer permits it and the complete cable installation is safely rated above 60A.
However, if the chosen cable is rated for less than 60A under those conditions, you must use a smaller breaker or upgrade the cable.
Equipment with Startup or Surge Current
Some 12V equipment temporarily draws more current when starting than it does during normal operation.
Can draw high input current during startup and heavy loads.
May briefly draw substantially more current when starting.
Startup current may exceed the normal running draw.
High-current loads often require manufacturer-specified protection.
A breaker selected only from the equipment's typical running current may trip during startup. However, simply fitting a larger breaker without upgrading the cable can create a safety risk.
For equipment with high startup current, follow the manufacturer's recommended breaker and cable sizes. The breaker must also have the correct voltage rating, interrupt capacity and trip characteristics for the application.
Where Should a 12V Circuit Breaker Be Installed?
Circuit protection should generally be installed as close as practical to the battery or power source.
This reduces the length of unprotected positive cable. If a long, unprotected cable is damaged and contacts the vehicle body or another grounded surface, the battery may deliver extremely high fault current through the cable.
The breaker should also be:
- Mounted securely
- Protected from accidental terminal contact
- Installed in a suitable environment
- Easily accessible for inspection and resetting
- Connected using correctly sized lugs and terminals
If a cable is connected to power sources at both ends, such as between two batteries, circuit protection may be required at both ends. Follow the system and equipment manufacturer's installation diagram.
Common 12V Circuit Breaker Applications
Surface-mount resettable circuit breakers are commonly used in higher-current automotive, marine and auxiliary power systems.
Protect auxiliary battery and power-distribution cabling.
Suitable protection may be required at the power source and charger.
High-current inverter feeds need appropriately sized protection.
Useful across auxiliary 12V electrical and power-distribution systems.
Suitable breakers may be used in compatible marine auxiliary circuits.
Common for compressors, pumps and higher-current accessories.
Useful for suitable DC power-distribution applications.
Protect higher-current feeds supplying downstream circuits.
The correct breaker size varies between installations. Two systems using the same appliance may still require different cable sizes because of differences in cable length, routing and operating conditions.
Why Choose a Manual Reset Circuit Breaker?
A manual reset circuit breaker offers a convenient alternative to a single-use fuse in suitable applications.
No replacement fuse required after a trip
Clear indication when the circuit is open
Simple manual resetting after the fault is repaired
Easy surface-mount installation
Convenient circuit isolation during servicing
Suitable options for high-current DC systems
However, a resettable breaker is not automatically the best option for every circuit. Some equipment manufacturers specifically require a particular fuse type due to its speed, reliability or interrupt rating. Always follow that requirement.
VES Surface Mount Manual Resettable Fuse Breakers
The VES Surface Mount Manual Resettable Fuse Breaker range provides heavy-duty circuit protection for compatible automotive, marine, machinery and off-grid DC applications.
The range is available in:
With ratings available for different current requirements, you can select a breaker that suits your load and cable installation. These breakers support 12–48V DC systems and feature a surface-mount design for straightforward installation.
Before purchasing, confirm:
- Maximum equipment current
- Manufacturer's required protection rating
- Cable current capacity
- Cable-run length and voltage drop
- System voltage
- Terminal and cable-lug compatibility
- Environmental suitability
- Required breaker interrupt rating
Frequently Asked Questions
Yes, provided the equipment, cable, terminals and installation are all designed for that current. The system voltage alone does not determine the correct breaker size.
No. An oversized breaker can allow more current to flow than the cable can safely carry. The breaker must be sized to protect the cable while supporting the equipment's normal operating current.
Not automatically. The breaker must be suitable for the system voltage, fault current, environment and application. Some manufacturers require a particular fuse type and may not approve a circuit breaker as a replacement.
Check the inverter manufacturer's installation manual. Inverter current depends on its power rating, efficiency and surge capacity, and the required breaker or fuse may be much larger than the basic watts-divided-by-volts calculation suggests.
Some manual reset breakers allow convenient circuit disconnection, but suitability depends on the specific product and application. Do not operate a breaker as a regular switch unless the manufacturer confirms it is designed for that purpose.
Possible causes include an overloaded circuit, short circuit, damaged wiring, loose or overheated connections, an undersized breaker or excessive equipment startup current. Find and correct the fault before resetting the breaker.
Final Circuit Breaker Sizing Checklist
Before choosing a circuit breaker for your 12V system, make sure you know:
The equipment's maximum current draw
Its recommended fuse or breaker rating
The cable's safe current capacity
The total cable-run length
The expected voltage drop
Any startup or surge current
The required system-voltage rating
The installation environment
The right breaker is not simply the closest rating to your appliance's current draw. It must work with the equipment, wiring and complete installation to provide reliable circuit protection.
