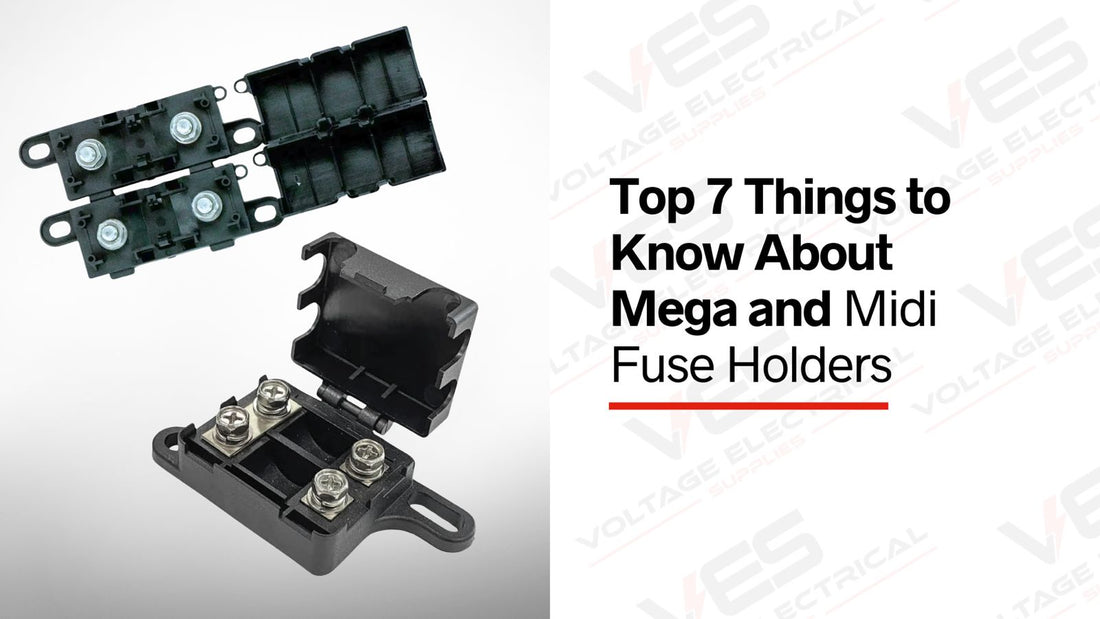

Top 7 Things to Know About Mega and Midi Fuse Holders

Whether you're wiring a dual battery system in your 4WD, setting up a caravan, building out a solar off-grid setup, or simply upgrading your vehicle's electrical protection, choosing the right fuse holder is one of the most important decisions you'll make. Two of the most commonly used high-current fuse types in Australia are the Mega fuse and the Midi fuse, and knowing the difference could save your wiring, your gear, and potentially your vehicle.

At Voltage Electrical Supplies, we've helped thousands of Australians source the right electrical components for automotive, marine, agricultural, and off-grid applications. In this guide, we break down the top 7 things every tradesperson, DIY enthusiast, or electrician needs to know about Mega and Midi fuse holders.

What Are Mega and Midi Fuse Holders?

Fuse holders are the housings designed to secure, protect, and provide electrical connections for your fuses. When you're dealing with high-current DC circuits, such as main battery feeds, alternator protection lines, or inverter circuits, standard blade or glass tube fuses simply aren't up to the job. That's where Mega and Midi fuse holders come in.

Mega fuse holders are designed specifically for the larger Mega-style fuse, a bolt-down fuse that can handle extremely high amperages in demanding environments. Midi fuse holders, on the other hand, are built for the smaller, more compact Midi-style fuse, offering a tidier and slightly lower-current solution.

Both types are used extensively across:

• Cars, utes, and 4WDs
• Trucks and construction vehicles
• Caravans and motorhomes
• Agricultural machinery
• Marine vessels and boats
• Solar and off-grid power systems

Understanding which one suits your application starts with knowing the technical differences between them.

Mega vs Midi Size and Physical Dimensions

One of the most immediately noticeable differences between Mega and Midi fuse holders is their physical size.

Mega fuse holders are larger and more robust. They are designed for heavy-duty installations where cable sizes are substantial and current draws are high. The larger form factor means more surface area for heat dissipation — important when managing high amperages over extended periods.

Midi fuse holders are more compact. They're designed for installations where space is at a premium, or where the current requirements are more moderate. Their smaller footprint makes them popular in tighter wiring bays, van builds, and neatly packaged fuse distribution setups.

A quick comparison:

Pro Tip from Voltage Electrical Supplies: Always check that your holder matches the fuse type. Mega fuses are not interchangeable with Midi fuses — the physical dimensions and mounting points are different.

Amperage Ratings: How Much Current Can Each Handle?

Amperage rating is arguably the most critical factor when selecting a fuse holder. Get it wrong, and you either risk nuisance tripping (too low a rating) or worse — failing to protect your wiring in a fault condition (too high a rating).

Mega fuse holders are rated for very high current applications. At Voltage Electrical Supplies, our Mega fuse kits are available across a wide range of amperages, from 40A right through to 500A, making them ideal for:

• Main battery-to-battery charger lines
• High-capacity inverter feeds (e.g., 2000W–5000W inverters)
• Large winch installations
• Primary power distribution in heavy vehicles

Midi fuse holders typically handle a range from 30A up to around 200A, making them well-suited to:

• Dual battery isolation circuits
• DC-DC charger inputs and outputs
• Individual accessory feeds
• Moderate solar and off-grid battery bank protection

Both fuse types can operate at up to 58V DC, making them compatible with 12V, 24V, and 48V battery systems — critical knowledge for those running lithium battery setups.

What to Look for in a Fuse Holder

Not all fuse holders are created equal. When shopping for Mega or Midi fuse holders in Australia, look for the following quality indicators:

Durable Housing Material

The fuse holder body should be made from a high-quality thermoplastic or reinforced plastic that resists heat, vibration, and UV degradation — particularly important for under-bonnet or outdoor installations. At Voltage Electrical Supplies, our Mega fuse kits feature a plastic fuse holder and Mega fuse shell built for durability in harsh Australian conditions.

Clear Inspection Window

A built-in clear window on the fuse or fuse holder allows you to quickly check whether a fuse has blown without having to disassemble anything. Our kits include fuses with a clear visibility window and clearly marked amperage ratings for easy field identification.

Secure Connection Points

Look for fuse holders with solid M8 bolt connections or equivalent, ensuring a low-resistance, high-integrity connection that won't loosen over time due to vibration — a common failure point in automotive electrical systems.

IP Rating

For marine, agricultural, or outdoor use, look for fuse holders with an adequate ingress protection (IP) rating to guard against moisture and dust intrusion.

Dovetail / Modular Mounting

Some Mega fuse holders (including those from leading brands stocked by Voltage Electrical Supplies) feature dovetail connections, allowing multiple holders to be linked together and mounted to a busbar — ideal for professional wiring harnesses.

Fuse Holder Installation Best Practices

Even the best fuse holder will fail to perform properly if it's installed incorrectly. Here are the key installation best practices for Mega and Midi fuse holders:

Place the Fuse Holder as Close to the Power Source as Possible

The golden rule of fuse placement is to protect the cable, not the load. Your fuse holder should be positioned as close to the battery or power source as practical — ideally within 300mm of the battery terminal. This ensures that in the event of a short circuit anywhere along the cable run, the fuse will blow before the cable has a chance to overheat.

Use the Correct Cable Size

Your fuse rating must be matched to your cable's current-carrying capacity. Using a 250A fuse on a cable rated for 100A defeats the purpose of the fuse entirely. Always consult a cable sizing chart and select both your cable and fuse holder as a matched pair.

Torque Connections Correctly

Under-tightened bolt connections on Mega and Midi fuse holders can cause high-resistance connections, leading to heat build-up and potential failure. Over-tightened connections can damage the holder or fuse terminals. Follow the manufacturer's torque specifications where provided.

Protect the Holder from Physical Damage

Mount your fuse holder in a location that is protected from mechanical damage, road debris, and excessive heat. Avoid mounting directly next to exhaust components or in areas where water pooling could occur.

Always Carry a Spare Fuse

Our Mega and Midi fuse kits from Voltage Electrical Supplies come with 3 fuses — including 1 spare — so you're never caught out in the field. A blown fuse at the wrong moment can leave you stranded, so keeping a spare on hand is simply good practice.

Which Fuse Holder Suits Your Setup?

Choosing between a Mega and a Midi fuse holder largely comes down to your specific application and current requirements. Here's a practical guide:

Automotive & 4WD Builds

• Main battery feed to secondary battery: Mega fuse holder (100A–250A depending on cable size and charge current)
• DC-DC charger input: Midi fuse holder (typically 30A–80A)
• Winch protection: Mega fuse holder (200A–500A for large winches)
• Accessory fuse distribution: Midi fuse holder as a primary feed to a fuse block

Caravan & RV Wiring

• Main 12V feed from tow vehicle: Mega fuse holder
• Solar regulator input/output: Midi fuse holder (sized to your array)
• Inverter protection: Mega fuse holder (sized to inverter capacity)

Marine Applications

• Engine start circuit protection: Mega fuse holder
• Bilge pump and accessory feeds: Midi fuse holder
• Main DC distribution panel feed: Mega fuse holder

Solar & Off-Grid Systems

• Battery bank main protection: Mega fuse holder (sized to maximum discharge current)
• Charge controller output: Midi fuse holder
• Individual circuit feeds: Midi fuse holder

What Voltage Electrical Supplies Recommends

At Voltage Electrical Supplies — a 100% Australian-owned company — we understand the specific needs of Australian automotive, agricultural, marine, and off-grid electrical applications. Our range of Mega and Midi fuse kits is designed to cover the full spectrum of current requirements, from light-duty secondary circuits all the way to demanding high-current main feeds.

What's Included in a Voltage Electrical Supplies Fuse Kit?

Each of our Mega fuse kits includes:

• 2 x Mega fuse holders — durable plastic construction with a Mega fuse shell
• 3 x Mega fuses — including 1 spare fuse for field replacement
• Available in current ratings from 40A through to 500A to suit your exact application
• Clear window on fuses for easy visual inspection
• Amperage clearly marked on each fuse

How to Choose the Right Amperage

As a general guide:

• 40A–100A — Suitable for DC-DC charger feeds, medium accessory circuits, and smaller solar systems
• 100A–200A — Ideal for dual battery main feeds, moderate inverters, and mid-range solar battery banks
• 200A–300A — Suited to large inverter feeds, high-capacity lithium battery systems, and heavy accessories
• 300A–500A — For maximum current protection in serious off-grid, commercial vehicle, or marine builds

Still not sure which rating you need? Our team at Voltage Electrical Supplies is here to help. As a fully insured, Australian-owned business with deep expertise in electrical supplies, we can help you select the right product for your specific build and budget.

Conclusion

Mega and Midi fuse holders are essential components in any serious 12V, 24V, or 48V DC electrical system — from 4WD dual battery builds to caravan solar setups to marine electrical panels. Understanding the differences in physical size, amperage ratings, installation requirements, and ideal applications will help you make the right choice every time.

At Voltage Electrical Supplies, we stock a comprehensive range of Mega and Midi fuse kits across all common current ratings, backed by Australian expertise, full insurance, and genuine customer support. Whether you're a professional auto electrician or a passionate DIY builder, we've got the products and knowledge to help you get it right.

Frequently Asked Questions

Can I use a Mega fuse holder for a Midi fuse? No. Mega and Midi fuses have different physical dimensions and mounting points. They are not interchangeable, and attempting to use the wrong holder can result in a poor connection or complete failure.

What's the maximum voltage rating for Mega and Midi fuse holders? Most quality Mega and Midi fuse holders are rated for up to 32V or 58V DC, with some options available for 80V DC — suitable for 12V, 24V, and 48V battery systems.

Do I need to fuse both the positive and negative cable? In most standard DC applications, only the positive cable needs to be fused close to the battery. The negative cable should be sized appropriately and have a clean, direct path to ground, but fusing the negative is generally not required in typical automotive or caravan setups.

How do I know if my fuse has blown? Our Mega fuse kits feature a clear inspection window that lets you see the fuse element without disassembly. A blown fuse will have a visible break in the element. Always replace with a fuse of the same amperage rating.
