The Ultimate MIDI Fuse Guide for 4WDs, Caravans & Dual Battery Systems
Share
MIDI fuses are among the most widely used high-current protection devices in Australian 12V and 24V electrical systems. Whether you're installing a dual battery setup in a 4WD, wiring a caravan, connecting a DC-DC charger, or building an off-grid solar power system, selecting the correct MIDI fuse is essential for safety, compliance, and long-term reliability.
Unlike standard blade fuses, MIDI fuses are designed for higher current circuits and bolt securely into dedicated fuse holders. They protect wiring—not appliances—from overloads and short circuits by disconnecting power before cable insulation can overheat or ignite.
What is a MIDI Fuse?
MIDI fuses are compact bolt-down strip fuses typically rated from 30A to 200A. They are commonly installed within 150 mm of the battery positive terminal to protect the entire cable run.
How a MIDI Fuse Works
During normal operation current passes through a calibrated metal element. If current exceeds the fuse rating for long enough, the element melts and opens the circuit, preventing cable damage and reducing fire risk.
Common Australian Applications

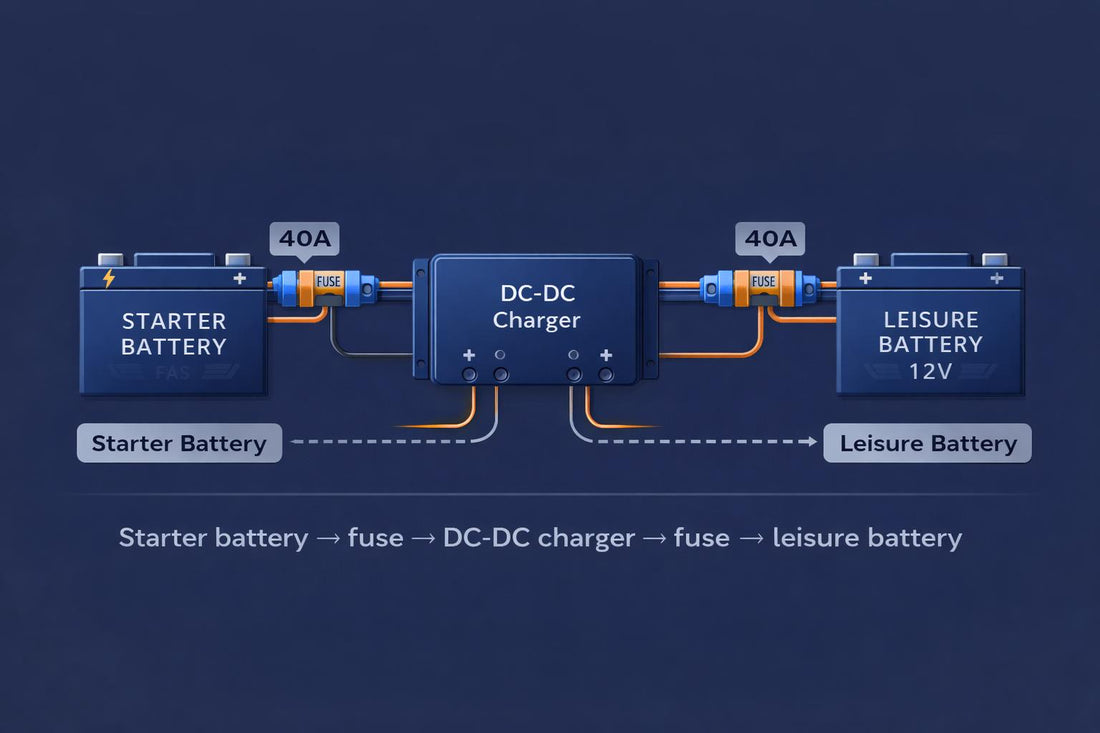

• 4WD dual battery systems
• Caravan and camper trailers
• Lithium battery upgrades
• Solar charge controllers
• Marine electrical systems
• Inverters
• Winch accessory circuits
• DC-DC chargers
MIDI vs MEGA vs ANL
MIDI fuses are smaller than MEGA fuses and ideal for medium-to-high current automotive circuits. ANL fuses are generally preferred for very high-current inverter applications.
How to Choose the Correct Fuse
Select the fuse according to cable ampacity first, then ensure it comfortably exceeds the continuous operating current while remaining below the cable's maximum safe rating. Never oversize a fuse simply to stop nuisance blowing.
Recommended Installation
Install the fuse as close as practical to the battery positive terminal (typically within 150 mm). Use quality copper lugs, correct crimping tools and weather-resistant fuse holders in engine bays.
Troubleshooting
If a MIDI fuse blows repeatedly, investigate for a short circuit, damaged cable, incorrect fuse size, faulty accessory, or excessive current draw before replacing it.
Maintenance
Inspect annually for corrosion, loose terminals, heat discolouration, cracked fuse bodies and water ingress. Replace damaged components immediately.
Quick Reference Table
| Fuse Rating | Typical Use | Common Cable Size |
|---|---|---|
| 40A | Small DC-DC Charger | 8 B&S |
| 60A | Medium Power Accessories | 8 B&S |
| 80A | Large DC-DC Charger | 6 B&S |
| 100A | Dual Battery Main Feed | 6 B&S |
| 150A | Large Power Inverter | 2–4 B&S |
| 200A | Heavy-Duty Inverter Systems | 0–2 B&S |
│
│
Cable
│
Load
Frequently Asked Questions
What size MIDI fuse do I need?
Choose a rating that protects the cable while accommodating normal operating current.
Can I install a larger fuse?
No. Oversizing reduces cable protection and can create a fire hazard.
Where should the fuse be mounted?
Within 150 mm of the battery positive terminal whenever practical.
Can MIDI fuses be used with solar?
Yes. They are commonly used between batteries, charge controllers and inverters.
Conclusion
A correctly selected MIDI fuse is one of the most important safety components in any Australian automotive, caravan or off-grid electrical installation. Matching the fuse to the cable, installing it close to the battery and using quality components dramatically improves reliability and electrical safety.
