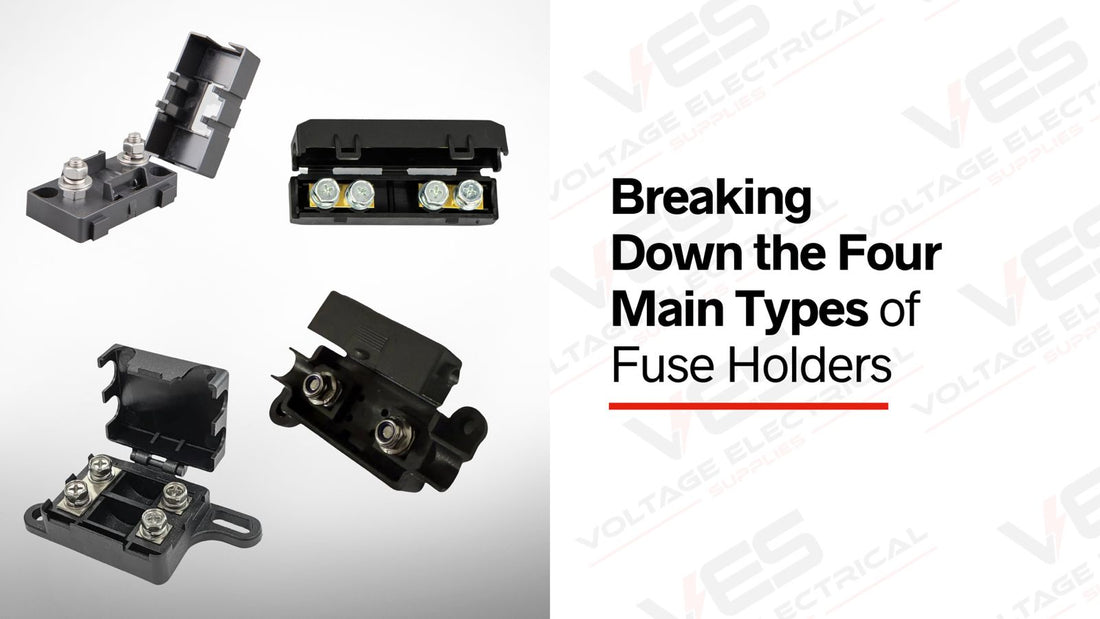

Breaking Down the Four Main Types of Fuse Holders

If you've ever stood in front of a shelf of fuse holders — or scrolled through product listings trying to work out what you actually need — you're not alone. Fuse holders come in a surprising number of styles, and picking the wrong one can mean a sloppy installation, a poor electrical connection, or worse, no protection at all when you need it most.

At Voltage Electrical Supplies, we're a 100% Australian-owned company supplying quality electrical components to auto electricians, 4WD enthusiasts, caravan builders, marine riggers, solar installers, and tradespeople across Australia. One of the most common questions we get is: "Which fuse holder do I actually need?"

The answer depends on your application, your available space, your current requirements, and how you want the installation to look and perform over the long term. To help you decide, we're breaking down the four main types of fuse holders — modular, inline, nylock, and surface mount — so you can make a confident, informed choice every time.

Why the Type of Fuse Holder Matters

A fuse is only as good as the holder it sits in. A loose, poorly rated, or incorrectly installed fuse holder introduces resistance into the circuit, creates heat, and can cause intermittent faults that are notoriously difficult to diagnose. In the worst cases, a failed fuse holder connection can cause electrical fires or leave you stranded in the middle of nowhere.

The right fuse holder for your build will:

• Create a secure, low-resistance electrical connection
• Be appropriately rated for the current and voltage of your circuit
• Be suited to the environment it's installed in (engine bay, cabin, outdoor, marine)
• Allow easy fuse inspection and replacement without disturbing other wiring
• Look clean and professional in the final installation

With that in mind, let's get into the four main types.

Type 1: Modular Fuse Holders

What Are They?

Modular fuse holders are one of the most versatile and expandable options available. Rather than being a single, fixed unit, modular holders are designed to link together — typically via a dovetail or clip-together mechanism — allowing you to build a custom fuse distribution setup from individual sections.

At Voltage Electrical Supplies, our VES Modular Midi Fuse Block is a prime example. It combines a Midi fuse input with a busbar and four individual Midi fuse holder positions, all in one integrated assembly. Each modular section can be individually loaded, and the busbar distributes current cleanly across multiple output circuits.

Key Features

• Expandable and configurable — add or remove fuse positions as your system grows
• Integrated busbar options — simplifies wiring by consolidating positive distribution into a single point
• Clean, professional installation — all circuits run from one central location, reducing wiring clutter
• Individually load-rated sections — each section handles its circuit independently for maximum safety
• Compatible with Midi fuses — rated up to 200A per section and a maximum overall system rating of 300A

Best Applications

Modular fuse holders are the go-to choice for anyone building a comprehensive 12V system from the ground up. They're especially popular in:

• Dual battery setups where multiple circuits need individual protection (fridges, lighting, UHF radios, air compressors, DC-DC chargers)
• 4WD and touring vehicle builds where the electrical system will evolve over time with new accessories
• Caravan and camper trailer electrical panels where a central distribution point keeps things neat
• Van and canopy conversions with dedicated 12V power management systems
• Solar off-grid systems requiring multiple protected output circuits from a single battery bank

Pro Tip

When using a modular fuse block with a busbar, always place your highest-current loads closest to the input connection and distribute loads evenly across the busbar. This prevents heat concentration in any one part of the block and ensures every circuit remains within its rated operating temperature.

Type 2: Inline Fuse Holders

What Are They?

Inline fuse holders are arguably the most widely recognised type of fuse holder. As the name suggests, they install directly along a cable run — the cable is cut, and the fuse holder is inserted in series, making it part of the wiring itself rather than a separate mounted unit.

Inline fuse holders feature a fuse mounted inside the holder body which is then connected to a circuit using two external cables wired to the holder. This flexible design provides an easily replaceable and insulated fuse with no requirement to mount the fuse to a fixed panel or circuit board.

At Voltage Electrical Supplies, our VES ANS Fuse & Holder Kit includes both inline and single holders, with support for ANS, ANF, ANG, and Midi fuses across a range from 30A to 100A.

Key Features

• No fixed mounting required — can be installed anywhere along a cable run
• Flexible placement — ideal when there's no convenient mounting surface nearby
• Wide fuse compatibility — available for ATO/ATC blade fuses, Midi fuses, ANS/ANF fuses, and more
• Sealed and unsealed options — waterproof variants available for engine bay or outdoor use
• Quick and easy installation — minimal tools required, making them popular for DIY builds

Best Applications

Inline fuse holders install along wiring harnesses to put overcurrent protection in places where fuse blocks will not fit or where routing cables to a junction box would prove impractical. This makes them perfect for:

• Single accessory circuit protection — protecting a single run to a fridge, lighting circuit, or auxiliary device
• Alternator protection lines — fusing the cable between the alternator and secondary battery
• Auxiliary battery cable fusing — where no panel or surface mount location is available
• Retrofitting circuit protection into existing wiring harnesses without rebuilding the whole loom
• Marine and boat wiring where cable runs are long and mounting options are limited
• DIY solar installations — inline on charge controller input and output wiring

Pro Tip

Always install your inline fuse holder as close to the power source as possible — within 300mm of the battery or supply terminal is the industry standard. The fuse protects the cable, not the load, so the shorter the unprotected section of wire between the battery and the fuse, the better.

Type 3: Nylock Fuse Holders

What Are They?

Nylock fuse holders are a specific mounting style that uses nylock (nylon-insert locking) nuts to secure cable terminals and the fuse itself to the holder's stud connections. The nylon insert in the nut grips the thread and resists vibration-induced loosening — a critical feature in any mobile or off-road application.

At Voltage Electrical Supplies, our Midi Fuse Kit Nylock range is purpose-built for this style, offering kits that include the fuse holders, Midi fuses, ring terminals, and heatshrink — everything you need for a complete, professional installation. Available from 23A right through to 200A, they're rated up to 32V DC and built for both 12V and 24V systems.

Key Features

• Vibration-resistant fastening — nylock nuts won't work loose over corrugated roads or rough terrain
• Secure terminal connection — ring terminals are bolted firmly to the stud, creating a reliable low-resistance joint
• Complete kit inclusions — Voltage Electrical Supplies Nylock kits include fuses, terminals, and heatshrink, so there's no hunting around for compatible parts
• 30mm fuse hole spacing for a secure, correctly aligned fit
• Unmatched temperature and melt resistance — the plastic housing is rated to handle the heat generated by high-current applications
• Rated up to 32V DC — compatible with 12V and 24V battery systems

Best Applications

Nylock fuse holders are the preferred choice whenever vibration is a significant factor in the installation environment. Key applications include:

• Off-road and 4WD vehicles subject to constant corrugation, rock crawling, and rough terrain
• Agricultural machinery — tractors, headers, and other farm equipment that vibrate continuously during operation
• Trucks and heavy commercial vehicles where vibration from diesel engines and road surfaces is constant
• Marine vessels — especially high-speed or offshore boats where wave impact creates ongoing vibration
• Construction equipment — excavators, skid steers, and compactors
• Caravan and camper trailer builds where road vibration from the tow vehicle is transmitted through the chassis

Pro Tip

When installing nylock fuse holders, always use the correct size ring terminals to match the stud diameter, and apply heatshrink over each terminal barrel for added moisture protection. The included heatshrink in our kits makes this step easy and ensures every connection is properly sealed.

Type 4: Surface Mount Fuse Holders

What Are They?

Surface mount fuse holders are designed to be fixed directly to a flat surface — a firewall, bulkhead, panel, battery tray, or mounting plate — using screws, bolts, or a bracket. Unlike inline holders that float freely in a cable run, surface mount holders have a fixed body that anchors the fuse securely in position.

The base of the holder is usually attached to a surface by fixing screws in the centre of the base. This fixed mounting keeps the holder firmly in place regardless of vibration or cable movement, and gives the installation a clean, permanent appearance.

At Voltage Electrical Supplies, our Midi Fuse Holder with Terminal Inputs is a great example of a surface mount style fuse holder with added functionality — it features dual input terminals, four output terminals, a dust-proof cover, and a built-in LED indicator that lights up when a fuse blows.

Key Features

• Fixed, stable mounting — screwed or bolted to a surface for a permanent, secure installation
• LED blown-fuse indicator (on select models) — instantly alerts you when a fuse has blown without needing to open the holder
• Dustproof cover — protects the fuse and terminals from contamination in engine bays and outdoor environments
• Wide input/output options — some models support 0/4GA inputs and 4/8GA outputs, making them a dual-function power and ground distribution point
• High-conductivity copper internals with sand nickel plating on premium models for lasting performance
• Compatible with Midi and ANL-style fuses — widely compatible across 12V and 24V DC systems

Best Applications

Surface mount fuse holders are ideal whenever you want a clean, permanent, and accessible fuse location that doesn't rely solely on cable tension or inline positioning. Perfect for:

• Engine bay main fuse installation — mounted to the firewall or battery tray close to the battery
• Dual battery systems — protecting the main feed between the primary and secondary battery
• Car audio and amplifier builds — high-current fuse protection for amplifier power cables
• Solar and off-grid power systems — mounting a main protection fuse on the battery enclosure or control panel
• Marine electrical panels — surface mounting on bulkheads or battery boxes for a clean, serviceable installation
• Canopy and trailer builds — mounted inside a control box or on a mounting plate alongside other electrical components

Pro Tip

If your surface mount fuse holder will be exposed to moisture or contaminants, look for a model with an IP-rated cover or dustproof cap. For engine bay installations, position the holder where it won't be directly exposed to water splash from the engine or wheel wells. Our Midi Fuse Holder with Terminal Inputs includes a protective dust cover — a smart choice for any installation where contamination is a risk.

Which Fuse Holder Is Right for You?

Can You Use Multiple Types Together?

Absolutely — and in most real-world builds, you will. A well-planned 12V electrical system typically uses a combination of fuse holder types to achieve the best outcome for each circuit:

• A modular fuse block with busbar at the distribution centre, fed by the main battery feed
• A surface mount or nylock holder protecting the main cable from the battery to the modular block
• Inline holders on individual accessory circuits where running wires back to the central block isn't practical
• Nylock holders on any high-vibration connections, such as those near the engine or on the chassis rail

This layered approach ensures every part of your system is properly protected, cleanly installed, and easy to service.

What Voltage Electrical Supplies Stocks

At Voltage Electrical Supplies, we stock the full range of fuse holder types to cover every application:

• VES Modular Midi Fuse Block — with busbar and multiple fuse holder positions, rated up to 300A overall
• VES ANS Fuse & Holder Kit — includes inline and single holders, supporting ANS, ANF, ANG, and Midi fuses from 30–100A with a customisable configuration
• Midi Fuse Kit Nylock Range — complete kits with holders, Midi fuses, ring terminals, and heatshrink, from 23A to 200A, rated to 32V DC
• Midi Fuse Holder with Terminal Inputs — surface mount style with LED indicator, dual inputs, four outputs, and dustproof cover, rated 300A at 12V
• Mega Fuse Kits — for high-current main feed protection from 40A to 500A

All of our products are available online with free shipping on orders over $200 Australia-wide.

Conclusion

Choosing the right fuse holder type isn't complicated once you understand what each style is designed to do. Whether you need the expandability of a modular block, the flexibility of an inline holder, the vibration resistance of a nylock design, or the permanence of a surface mount solution — the right product is available at Voltage Electrical Supplies.

As a 100% Australian-owned and fully insured electrical supplies company, we understand the conditions that Australian builders, tradespeople, and adventurers work in. From the red dirt of the outback to the salt air of the coast, our products are selected to perform where it matters.

Frequently Asked Questions

Can I mix different fuse holder types in the same system? Yes — in fact, most professional 12V builds use a combination of modular, inline, nylock, and surface mount holders to suit the different requirements of each circuit.

Do I need a nylock holder specifically, or will a standard bolt work? Standard bolts can loosen over time due to vibration, which creates high-resistance connections that generate heat. Nylock nuts are strongly recommended for any mobile installation — automotive, agricultural, or marine.

What's the difference between a fuse holder and a fuse block? A fuse holder typically holds a single fuse and protects one circuit. A fuse block (or modular block) holds multiple fuses and allows centralised protection of multiple circuits from one location.

How do I know if my fuse holder is rated for my application? Check the holder's maximum amperage and voltage rating against your circuit requirements. Never use a holder rated below your circuit's maximum expected current. For help selecting the right product, contact our team at Voltage Electrical Supplies.

Are your fuse holder kits suitable for 24V systems? Yes. Our Midi Nylock and Midi modular holders are rated up to 32V DC, making them compatible with both 12V and 24V battery systems.
